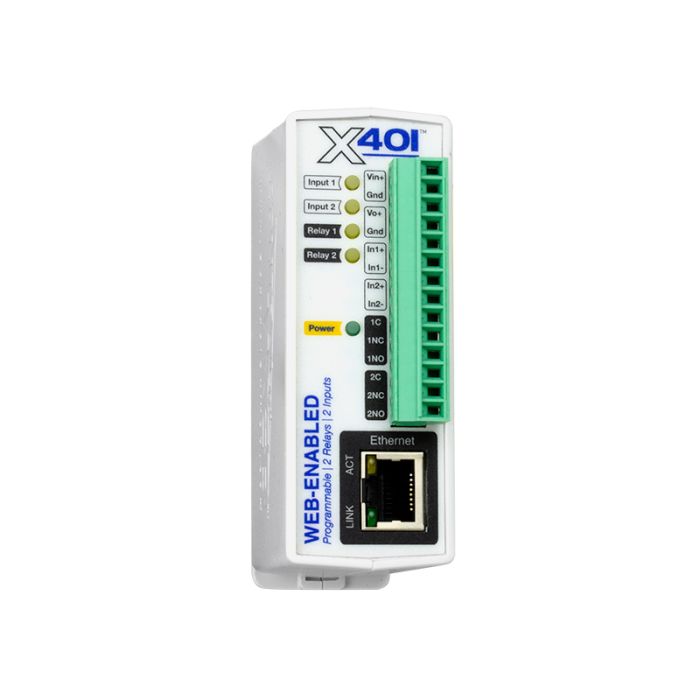

X-401-E: POE and/or 9-28 VDC

X-401-E: POE and/or 9-28 VDC

The X-401 is a drop-in hardware replacement for our X-301 (WebRelay-Dual) with minor changes to software or configuration. It has two SPDT relays (form C) and two optically-isolated inputs, plus all of the advanced features from our 400-series products.

Powerful scheduler with normal and override schedules, super flexible task builder, encrypted web pages, seamless peer-to-peer communications, and much more.

No software required, no programming necessary, and no subscription to buy.

Relay Contacts

• Max Voltage: 28VAC, 24VDC


• Max Current: 3A


• Contact Type: SPDT (Form C)


• Load Type: General Purpose


• Contact Resistance: < 50 milliohms initial


• Contact Material: AgSnO2


• Electrical Life: 100K cycles (Typical)


• Mechanical Life: 10M cycles (Typical)


• Environmental Rating: Over voltage Category II, Pollution Degree 2


• Relay Modes: ON/OFF or Pulsed


• Pulse Timer Duration: 0.1 to 86,400 Seconds (1-day)

Digital Inputs

• Number of Inputs: 2


• Type: Optically-Isolated


• Voltage Range: 4-26VDC


• Current: 950uA @ 4V, 8.5mA @ 26V


• Minimum Hold Time: 20ms


• Input Functions: Monitor State, Control Relays, Control Remote Relays, Scalable Counter, On Timer, Total On Timer, Frequency


• Maximum Count: 24-bit


• Max Count Rate: 200Hz Max (Dependent on Configuration)


• Edge Trigger: Rising, Falling or Both
