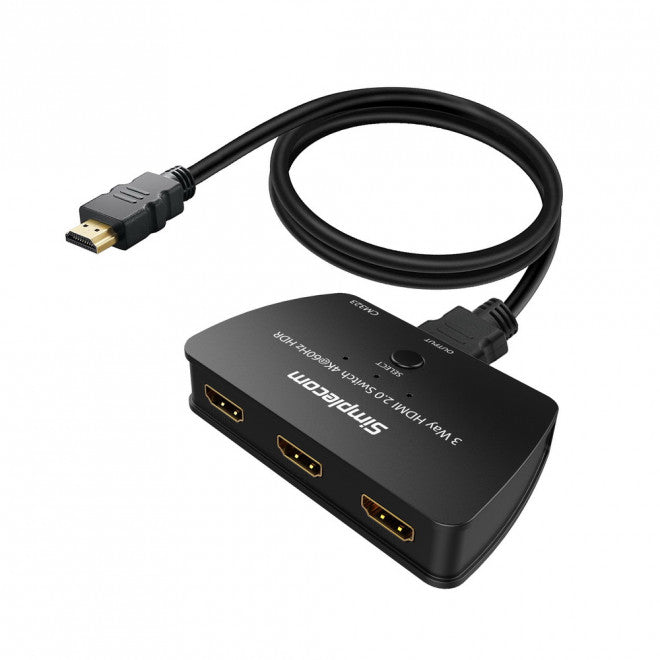

Simplecom CM323 3 Way HDMI 2.0 Switch 3 IN 1 OUT Ultra HD 4K 60Hz HDR HDCP 2.2

Simplecom CM323 3 Way HDMI 2.0 Switch 3 In 1 Out Splitter HDCP 2.2 4K @60Hz UHD HDR

CM323 is a 3 Way HDMI 2.0 4K switch for your latest gaming or home theatre setup. It widely compatible with most HDMI devices and supports HDMI 2.0 and HDCP 2.2, ideal for latest online streaming box and game console with 4K UHD HDMI output. This HDMI 2.0 4K switch is also backward compatible with previous HDMI revisions with 1080p / 720p video resolution devices.

Easy plug & play operation simply plug in the HDMI input sources into the input connections and the output connection to your TV or projector. It will automatically switch to the currently active input source if there is only one active input. If there are multiple active inputs, you can select the input by press the select button on the switch.

Features

Widely compatible HDMI devices with HDMI 2.0 and HDCP 2.2 support
Supported Video Resolutions up to 4Kx2K @ 60Hz
Support HDR and 4:4:4 RGB output
Backward compatible with previous HDMI revisions
Supports highest bandwidth up to 18Gpbs. Perfect for PS4 Pro, Xbox One S, Chromecast Ultra, Direct TV, Roku Premiere+, Fire TV, PCs etc.
Supports Auto Switching to active input source port*
Plug-and-Play, Self Powered
Specifications

HDMI version: HDMI 2.0 (backward compatible with previous HDMI revisions)
HDCP version: HDCP 2.2 (backward compatible with previous HDCP revisions)
Video Amplifier Bandwidth: 18Gpbs/250MHZ
Frequency: 25MHZ-165MHZ
Support Video Format: Ultra HD 4K/2K (3840X2160) @ 60Hz / 1080p / 1080i / 720p / 576p / 480p / 576i / 480i / 3D Video
Support Video Color: 12 bit Deep Color Per Channel
Support Audio Format: Dolby Digital, DTS-HD, Dolby-TrueHD, DTS, LPCM
Operating Temperature: 0°C to 70°C
Operating Humidity: 10% to 85% RH(no condensation)


*Note: Apple TV and some online streaming box keeps its HDMI port active even in the sleep state. Hence, auto-switching may not work with them. Manual switching can still be used in this scen
