Rosslare’s EX-07 is a heavy duty, non-sparking, non-magnetic, corrosion resistant, illuminated, anti-vandal, timed digital switch, designed for both indoor and outdoor use. It features solid state Piezoelectric Switch Technology generating two isolated...

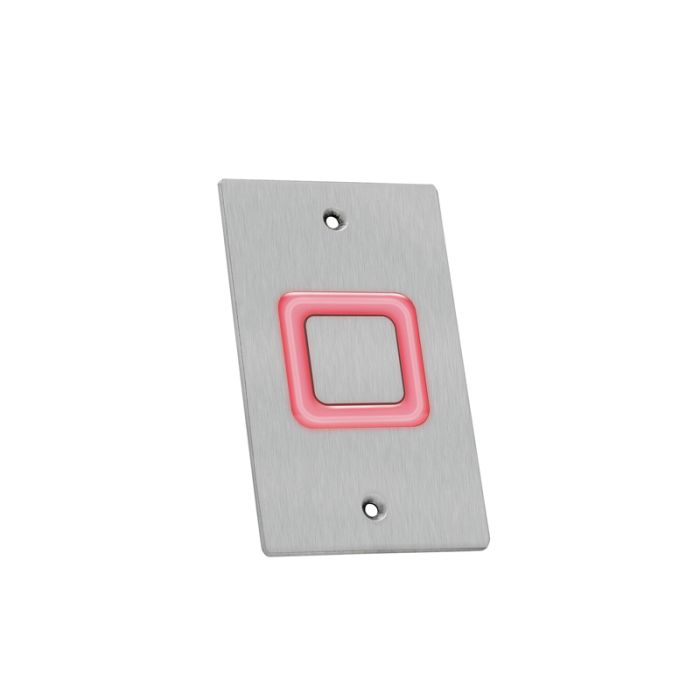

Rosslare’s EX-07 is a heavy duty, non-sparking, non-magnetic, corrosion resistant, illuminated,
anti-vandal, timed digital switch, designed for both indoor and outdoor use.
It features solid state Piezoelectric Switch Technology generating two isolated Form C output relays with no physical movement or moving parts.
Among its many features are: Jumper selectable illumination status with light dimming option,
buzzer mode, full dual-relay output, timed operation and relay toggle option.
The EX-07 mounts directly to a standard US size gang switchbox and is crafted to the highest manufacturing standards out of the finest materials under Rosslare’s ISO 9001:2008 Certified
Quality standards.

• Advanced soft touch piezoelectric switch


• New weatherproof design – water and dust proof, grease, oil and other chemical solvent repellent


• Vandal resistant


• Stainless steel mounting plate and tactile button with no moving parts


• Mounting Method Single Gang: Mounts directly to a US gang switchbox


• Backed by Rosslare’s International Guarantee and service with ISO9001 (Certified TÜV


• Rhineland) level business and manufacturing operations


• Non-sparking, non-magnetic, corrosion resistant


• Light square status indicator and accidental activation hindrance


• Adjustable Output and Led indication time of 1 to 60 seconds Output and indication toggle option


• Jumper selectable illumination status: red, green, or no illumination


• Built-in buzzer with alarm input and sound upon button press options


• Two separate full form-C relay outputs for separate application wiring: N.O. and N.C.


• Input for external lighting alerts for evacuation and other applications
