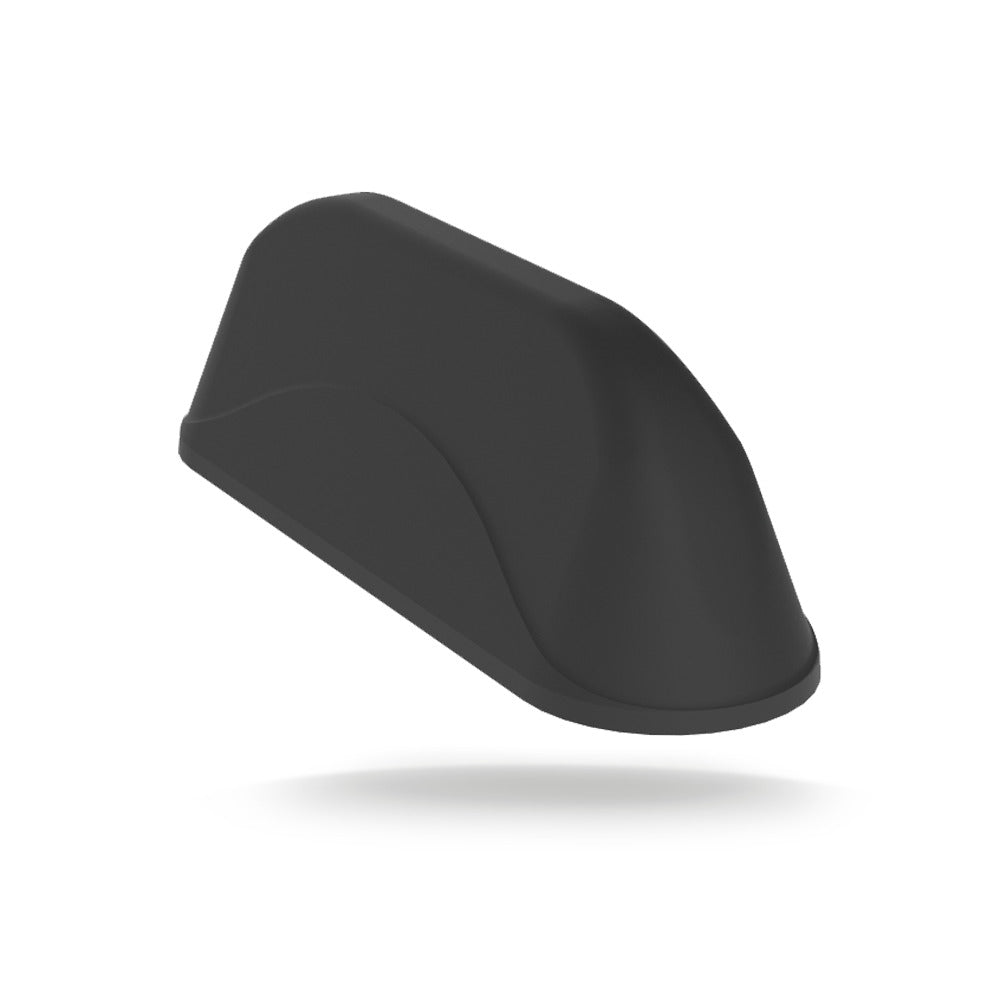

PANORAMA 2x2 Multifunction MiMo Antenna 4G/5G LTE 698-3800MHz 2x2 MiMo WiFi 2.4/5.0GHz Low profile fin design
PANORAMA 2x2 Multifunction MiMo Antenna 4G/5G LTE 698-3800MHz 2x2 MiMo WiFi 2.4/5.0GHz Low profile fin design
PANORAMA

PANORAMA 2x2 Multifunction MiMo Antenna 4G/5G LTE 698-3800MHz 2x2 MiMo WiFi 2.4/5.0GHz Low profile fin design

Product SKU: NHP-LGAM-7-27-24-58

Warning: Limited Stock Available.

Available:
Only 0 item in stock
0 item in stock
In stock
Out of stock
Back in stock
$169.00
Notify me When Available
You will receive an email when the product is available.
  • Description
  • Shipping & Returns

PANORAMA 2x2 Multifunction MiMo Antenna 4G/5G LTE 698-3800MHz 2x2 MiMo WiFi 2.4/5.0GHz Low profile fin design

This high-performance antenna offers multiple antenna functions for applications where a cost-effective, efficient and robust antenna is essential. It is ideal for vending machines, payment terminals and other M2M applications.
The L[G]AM consists of a 2×2 MiMo function for 2G/3G/4G/5G covering 698-3800MHz, a 2×2 MiMo function for 2.4/5GHz WiFi and an optional active antenna for GPS/GLONASS/Galileo/BeiDou with 26dB gain LNA for high-quality positioning and filtering. The antenna maintains a high level of performance even when mounted on a non-metallic surface.

Cradlepoint Approved for S700, IBR600 Series

Compact low profile MiMo LTE antenna
1x or 2×2 MiMo dual-band WiFi
Optional GNSS version available
High performance in a distinctive design
Covers all 2G/3G/4G/5G LTE cellular band
Dual-band 2.4/5GHz WiFi
Weatherproof IP66 Certified design
Single hole mount with a small footprint

Static M2M & loT devices
Remote monitoring
Smart metering
Vending machines

ELECTRICAL DATA
Pattern Omnidirectional
Max Input Power(W) 25
Frequency Range | Gain 698 – 960MHz | 2dBi; 1710 – 3800MHz | 5dBi
Cellular LTE Elements 2 x 2 MIMO
WIFI Elements 2 x 2 MIMO; No
UHF Elements No
GPS DATA
GPS Frequency Range 1562-1612MHz
LNA GAIN (dB) 26
Number of GPS Elements 1 Module; No
MECHANICAL DATA
Colour Black
Operating Temperature -40°/ +80°C (-40.0°/ +176.0°F)
CABLE DATA
Cable Length – LTE 3 (m) | 9.84 (ft)
Cable length – GPS 3 (m) | 9.84 (ft)
Cable Length – WIFI 3 (m) | 9.84 (ft)
Cable Type (LTE) RG174
Cable Type (GPS) RG174
Cable Type (WIFI) RG174
TERMINATION DATA
Connector (WIFI) SMA Rev Pol; FAKRA I
Connector (GPS) SMA (m); FAKRA C
Connector (LTE) SMA (m); FAKRA D
MOUNTING DATA
Mounting Type Fixed Panel
Mounting Methods Panel
APPROVALS DATA
IP Rating IP66
TECHNOLOGY DATA
Technology GPS; WIFI MIMO; 4G/5G; WIFI; 5G; 2G/3G; 2G/3
