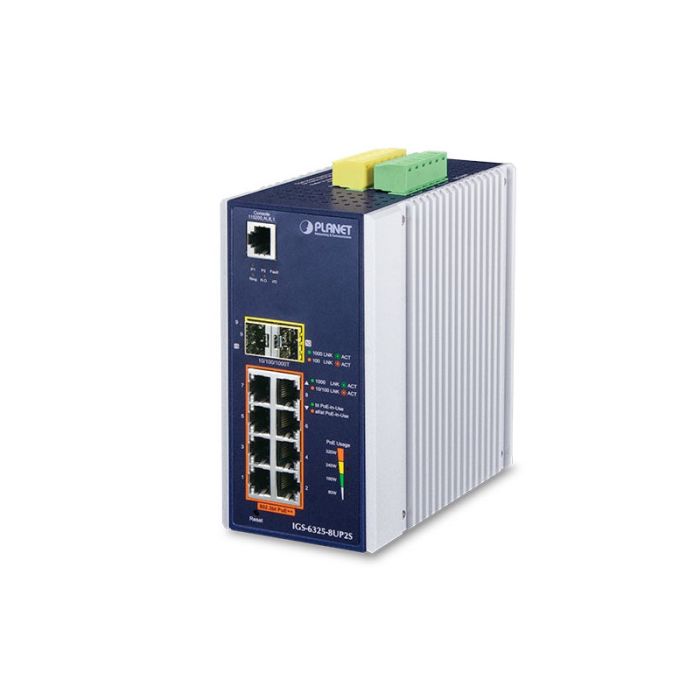

Industrial L3 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP + Managed Ethernet Switch

Industrial L3 8-Port 10/100/1000T 802.3bt PoE + 2-Port 1G/2.5G SFP + Managed Ethernet Switch

Physical Port

• 8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with 802.3bt PoE++ Injector function


• 2 100/1000/2500BASE-X SFP slots for SFP type auto detection


• One RJ45-to-RS232 console interface for basic management and setup

Industrial Hardened-design

• Dual power input, redundant power with reverse polarity protection

- DC 48 to 56V input

- Active-active redundant power failure protection

- Backup of catastrophic power failure on one supply

- Fault tolerance and resilience

• DIN-rail and wall-mountable design


• IP30 aluminum case


• Supports 6000V DC Ethernet ESD protection


• -40 to 75 degrees C operating temperature

Digital Input and Digital Output

• 2 Digital Input (DI)


• 2 Digital Output (DO)


• Integrate sensors into auto alarm system


• Transfer alarm to IP network via email and SNMP trap

802.3bt Power over Ethernet

• Complies with IEEE 802.3bt Power over Ethernet Plus Plus Type-4 PSE


• Backward compatible with IEEE 802.3at/af PD device


• Up to 8 ports of IEEE 802.3af/IEEE 802.3at/IEEE 802.3bt PoE++ devices powered


• Supports PoE power up to 95 watts for each PoE port


• Total of 360-watt PoE budget


• Auto detects powered device (PD)


• Circuit protection prevents power interference between ports


• Remote power feeding up to 100m


• PoE management features

- Total PoE power budget control

- Per port PoE function enable/disable

- PoE admin-mode control

- PoE port power feeding priority

- Per PoE port power limit

- PD classification detection

- PoE extend mode control to support power feeding up to a distance of up to 160 meters

• Intelligent PoE features

- Temperature threshold control

- PoE usage threshold control

- PD alive check

- PoE schedule

Layer 3 IP Routing Features

• IP dynamic routing protocol supports OSPFv2


• IPv4/IPv6 hardware static routing


• Routing interface provides per VLAN routing mode

Layer 2 Features

• High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth


• Storm Control support

- Broadcast/Multicast/Unicast

• Supports VLAN

- IEEE 802.1Q tagged VLAN

- Up to 255 VLANs groups, out of 4095 VLAN IDs

- Supports provider bridging (VLAN Q-in-Q IEEE 802.1ad)

- Private VLAN Edge (PVE)

- Protocol-based VLAN

- MAC-based VLAN

- Voice VLAN

- GVRP (GARP VLAN Registration Protocol)

• Supports Spanning Tree Protocol

- IEEE 802.1D Spanning Tree Protocol (STP)

- IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)

- IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN

- BPDU Guard

• Supports Link Aggregation

- 802.3ad Link Aggregation Control Protocol (LACP)

- Cisco ether-channel (static trunk)

- Maximum 4 trunk groups with 4 ports per trunk group

- Up to 40Gbps bandwidth (duplex mode)

• Provides port mirror (many-to-1)


• Port mirroring to monitor the incoming or outgoing traffic on a particular port


• Loop protection to avoid broadcast loops


• Link Layer Discovery Protocol (LLDP)


• Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices


• Supports G.8032 ERPS (Ethernet Ring Protection Switching)


• IEEE 1588 and Synchronous Ethernet network timing

Quality of Service

• Ingress Shaper and Egress Rate Limit per port bandwidth control


• 8 priority queues on all switch ports


• Traffic classification

- IEEE 802.1p CoS

- IP TOS/DSCP/IP precedence

- IP TCP/UDP port number

- Typical network application

• Strict priority and Weighted Round Robin (WRR) CoS policies


• Supports QoS and In/Out bandwidth control on each port


• Traffic-policing  on the switch port


• DSCP remarking

Multicast

• Supports IPv4 IGMP snooping v1, v2 and v3


• Supports IPv6 MLD snooping v1 and v2


• Querier mode support


• IPv4 IGMP snooping port filtering


• IPv6 MLD snooping port filtering


• MVR (Multicast VLAN Registration)

Security

• Authentication

- IEEE 802.1X Port-based/MAC-based network access authentication

- Built-in RADIUS client to cooperate with the RADIUS servers

- TACACS+ login users access authentication

- RADIUS/TACACS+ users access authentication

- Guest VLAN assigns clients to a restricted VLAN with limited services

• Access Control List

- IP-based Access Control List (ACL)

- MAC-based Access Control List

• Source MAC/IP address binding


• DHCP snooping to filter distrusted DHCP messages


• Dynamic ARP Inspection discards ARP packets with invalid MAC address to IP address binding


• IP Source Guard prevents IP spoofing attacks


• IP address access management to prevent unauthorized intruder

Management

• IPv4 and IPv6 dual stack management


• Switch Management Interfaces

- Console and Telnet Command Line Interface

- HTTP web switch management

- SNMP v1 and v2c switch management

- SSH, TLS, SSL and SNMP v3 secure access

• SNMP Management

- Four RMON groups (history, statistics, alarms, and events)

- SNMP trap for interface Link Up and Link Down notification

• IPv6 IP address/NTP/DNS management


• Built-in Trivial File Transfer Protocol (TFTP) client


• BOOTP and DHCP for IP address assignment


• System Maintenance

- Firmware upload/download via HTTP/TFTP

- Reset button for system reboot or reset to factory default

- Dual Images

• DHCP Relay


• DHCP Option 82


• DHCP Server


• User Privilege levels control


• Network Time Protocol (NTP)


• Network Diagnostic


• System Maintenance

- SFP-DDM (Digital Diagnostic Monitor)

- Cable diagnostic technology provides the mechanism to detect and report potential cabling issues

- ICMPv6/ICMPv4 remote ping

• SMTP/Syslog remote alarm


• System Log


• PLANET Smart Discovery Utility for deployment management
