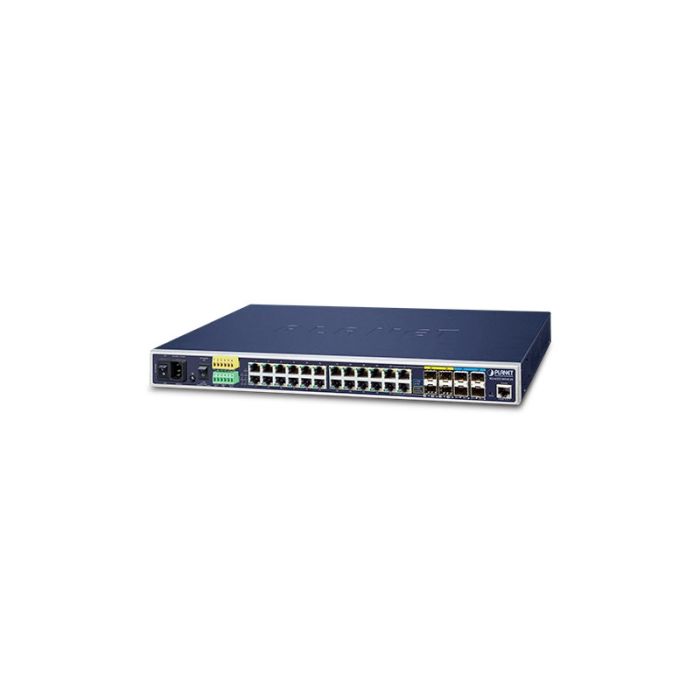

Industrial L3 24-Port 10/100/1000T 802.3at PoE + 4-Port Shared 100/1000X SFP Managed Ethernet Switch (-40~75 degrees C)

Industrial L3 24-Port 10/100/1000T 802.3at PoE + 4-Port Shared 100/1000X SFP Managed Ethernet Switch (-40~75 degrees C)

Physical Port

• 24 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector function


• 4 100/1000BASE-X mini-GBIC/SFP slots, shared with Port-21 to Port-24 compatible with 100BASE-FX SFP


• RJ45 to RS232 DB9 console interface for basic management and setup

Power over Ethernet

• Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE


• Up to 24 IEEE 802.3af devices powered


• Supports PoE power up to 36 watts for each PoE port


• 440-watt PoE budget


• Auto detects powered device (PD)


• Circuit protection prevents power interference between ports


• Remote power feeding up to 100m


• PoE management features



  • Total PoE power budget control


  • Per port PoE function enable/disable


  • PoE admin-mode control


  • PoE port power feeding priority


  • Per PoE port power limit


  • PD classification detection






• Intelligent PoE features



  • Temperature threshold control


  • PoE usage threshold control


  • PD alive check


  • PoE schedule
