Industrial 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

Industrial 10/100/1000BASE-T to 100/1000BASE-X SFP Media Converter

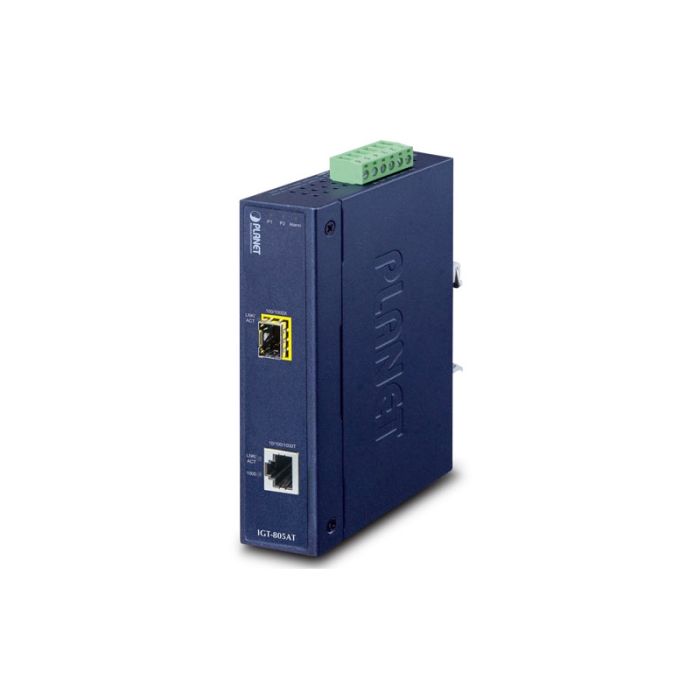

PLANET IGT-805AT is an Industrial Gigabit Media Converter providing non-blocking wire-speed performance and great flexibility for Gigabit Ethernet extension in harsh industrial environment. It is equipped with one 10/100/1000BASE-T RJ45 copper and one 100/1000BASE-X SFP fiber optic interface delivered in an IP30 rugged strong case with redundant power system. The IGT-805AT is well suited for applications in deploying surveillance system, and securing control and wireless service in climatically demanding environments with wide temperature range from -40 to 75 degrees C. With 9K jumbo frame feature support, the IGT-805AT can handle extremely large amounts of data transmission in a secure topology linking to a backbone or high-power servers.

Fiber-Optic Link Capability Enables Extension of Network Deployment

The mini-GBIC SFP slots built in the IGT-805AT support dual speed as it features 100BASE-FX and 1000BASE-SX/LX SFP (Small Form-factor Pluggable) fiber-optic modules. Now the administrator can flexibly choose the suitable SFP transceiver according to not only the transmission distance, but also the transmission speed required. The distance can be extended from 550 meters to 2km (multi-mode fiber) and up to 10/20/40/60/80/120 kilometers (single-mode fiber or WDM fiber). They are well suited for applications within the enterprise data centers and distributions.

Physical Port

• 1-port 10/100/1000BASE-T RJ45 with auto MDI/MDI-X function


• 1 SFP interface, 100/1000BASE-X dual mode (auto detection)

Layer 2 Features

• IEEE 802.3/802.3u/802.3ab/802.3z Ethernet standard compliant


• Supports auto-negotiation and 10/100Mbps half/full duplex and 1000Mbps full duplex mode


• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)


• 9K jumbo frame size support


• LFP (Link Fault Passthrough) and FEF (Far End Fault) function support


• Automatic address learning and address aging

Industrial Case and Installation

• Slim-type IP30 metal case


• DIN-rail and wall-mount designs


• Redundant power design



  • 12 to 48V DC, redundant power with reverse polarity protection


  • AC 24V power adapter acceptable






• Supports 6000 VDC Ethernet ESD protection


• -40 to 75 degrees C operating temperature
