Bosch Solution 6000 Control Panel IP Kit with White Colour LCD Wifi Keypad.

Bosch Solution 6000 Control Panel IP Kit with White Colour LCD Wifi Keypad.

**No onboard dialler port or Ethernet connection port - requires CM751B for Ethernet connection**

• Integrated access control for up to 16 doors


• MiFare Smart Card keypads, weather-proof external metal keypads, Internal & External LAN readers & Fingerprint LAN readers available


• IP Reporting via CSV-IP, Connetix, SIA, MyAlarm


• 5 onboard outputs (expandable to 37)


• 16 onboard zones (expandable to 144 wired or wireless), partitionable to 8 areas with 990 PIN, token, keyfob and Fingerprint users

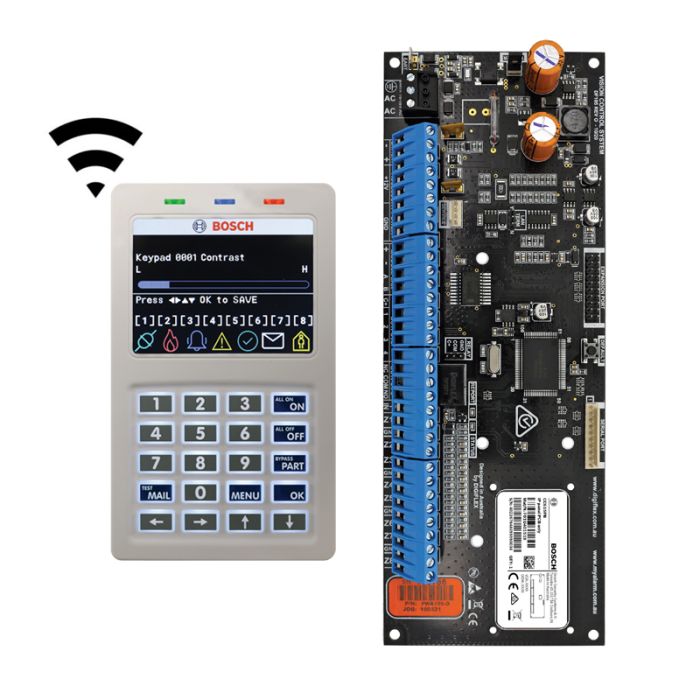

This kit includes:

• One CC615PB IP control panel;


• One CP737B Wi-Fi keypad.

CC615PB control panel functions

Integrated Access Control Access control is no longer reserved only for larger, more expensive systems. Proximity technology from Bosch provides an affordable and effective solution for up to 16 access doors. The new LAN readers include egress and lock control built in, which reduces cost and simplifies installation.

Advanced RS485 LAN

The control panel communicates with other system module devices via the built in RS485 LAN or Local Area Network. For increased security, the system uses antisubstitution technology and a proprietary data encryption algorithm to communicate with all LAN modules. When using the recommended cable types, the LAN can be up to 1200 meters in length, or even greater when LAN isolators are used.

Chime Mode

Chime mode allows monitoring a zone or group of zones by sounding the keypad buzzer or activating a programmable output. This feature is ideal to monitor business entry doors for customer entry during business hours.

Flexible Communications Options

CID, SIA, DOMESTIC and GSM-SMS Text Reporting formats are all standard out of the box and the dual reporting feature allows you to select which reports are sent to which route and in what format. Open / Close reporting can be selected individually for each user and area on the panel allowing the owner to monitor cleaner access, children returning home from school or access to a particular restricted area all via their mobile phone. Interactive voice reporting is also available as an option.

Delay Trouble Beeps

Setting this option will prevent any system trouble events from sounding the code pad speaker between the hours of 10pm until 7am. During this time, any new trouble event will be shown in the code pad display. If trouble events are still in effect after 7am the code pad will begin to sound the trouble alert to notify the user. This function is ideal for all residential applications.

Event Log

The control panel stores up to 2000 events from all areas. All events are recorded in the log regardless of the reporting setting. The event log may be viewed via the code pad or via a direct or remote connection from the Solution Link programming software.

Graphic User Interface

The Graphic User Interface incorporates a text driven menu. Color-coded, illuminated keys allow for easy identification and operation in all ambient light conditions and provide a positive feel to the user. Red and green indicators provide easy identification of Armed and Disarmed modes and the built-in sounder provides audible feedback via polyphonic like
