Bosch Photo Beam 60/120M Quad 4 Channel

Bosch Photo Beam 60/120M Quad 4 Channel

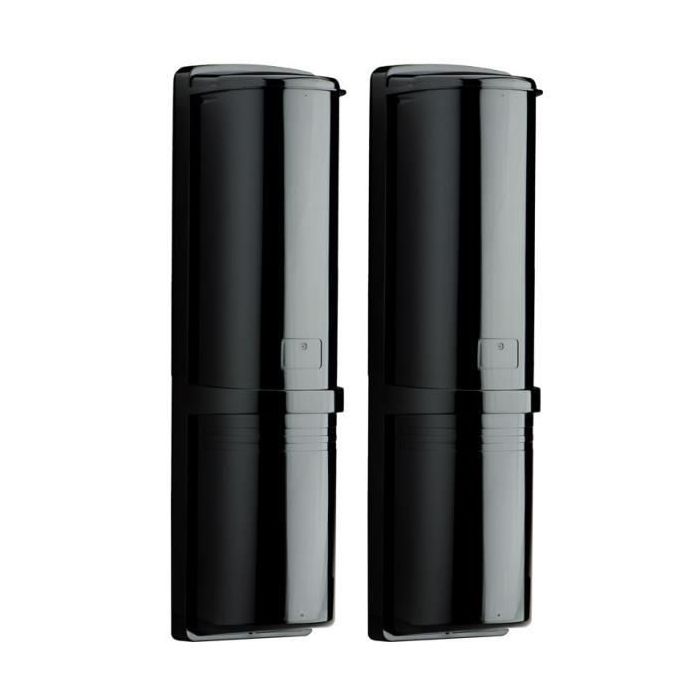

Four- channel quad-beam photoelectric detector designed for indoor and outdoor applications. Consisting of a separate transmitter and receiver. 60 m (196 ft) max outdoor range, 120 m (393 ft) max indoor range.

Consisting of a separate transmitter and receiver, it is designed to activate an alarm when an intruder passes within the direct line of sight between the transmitter and receiver.

Functions

Mounting features Mounting and installing the detector is now easier than ever. Install the detector through easy-to-use mounting hole locations which provide an enlarged entry point of access to accept small to large, single or multiple cable set wires. Fastening screw locations eliminate the need for unnecessary crawling or bending during installation.

Multiple Channel Operation

(4-channel models only) Configure the detectors for up to four different channels. This allows multiple units to be used near one another without the possibility of receiver crosstalk. This is particularly useful when stacking multiple beam sets.

High Density mode

(4-channel models only) The High Density mode allows you to add an additional zones of protection to detect larger objects that only partly interrupt the beams of individual devices. This feature allows an alarm condition to be generated when beam pairs are interrupted on adjacent devices but not all four beams are interrupted on one device.
