Aiphone IX Series 2- Vandal Resistant Color Video Door Station, Surface Mount

Aiphone IX Series 2- Vandal Resistant Color Video Door Station, Surface Mount

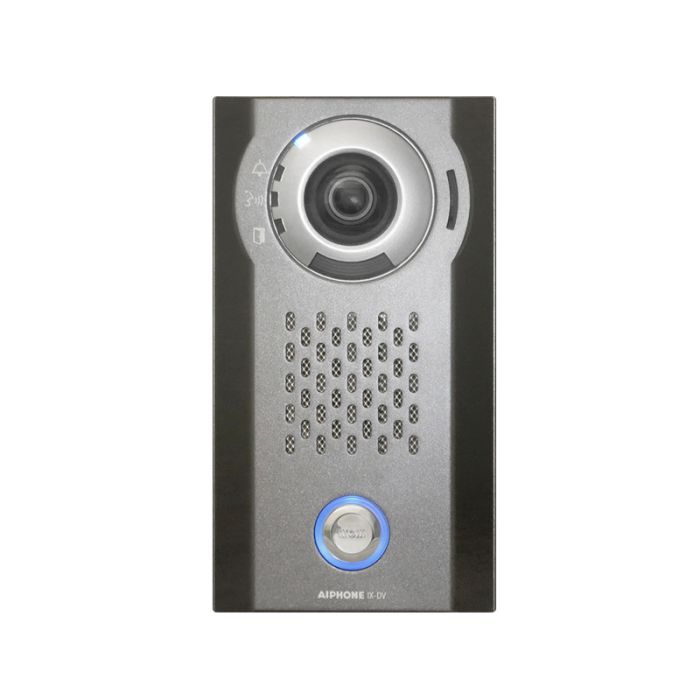

The IX-DV (surface mount) and IX-DVF (flush mount) are weather resistant, IP video door stations. They connect to a network using Cat-5e/6 cable and are both SIP compliant. Each station is equipped with a 1.23 megapixel fixed color camera. The camera angle can be vertically adjusted using a lever on the back of the station. The video can be streamed to 3rd party devices using ONVIF Profile S or RTSP. Audio and video can be captured on a microSD™ card. The IX-DV and IX-DVF can be programmed to call up to 20 different stations. There are three different call level selections. The stations have a 600Ω output that can be used for paging or communication. There are two contact outputs that can be programmed to trigger during door release, when the 600Ω output is used or based on the status of the station. There are six inputs that can be used to trigger an outgoing call or answer a call/page. Sound files can be uploaded for custom messages to be played during certain functions (door release, call placed, communication start, error message, ect.). The stations have audible and visual indications for calling, communication, and door release.
