24-Port Gigabit 802.3bt PoE++ Managed Injector Hub (800 watts)

24-Port Gigabit 802.3bt PoE++ Managed Injector Hub (800 watts)

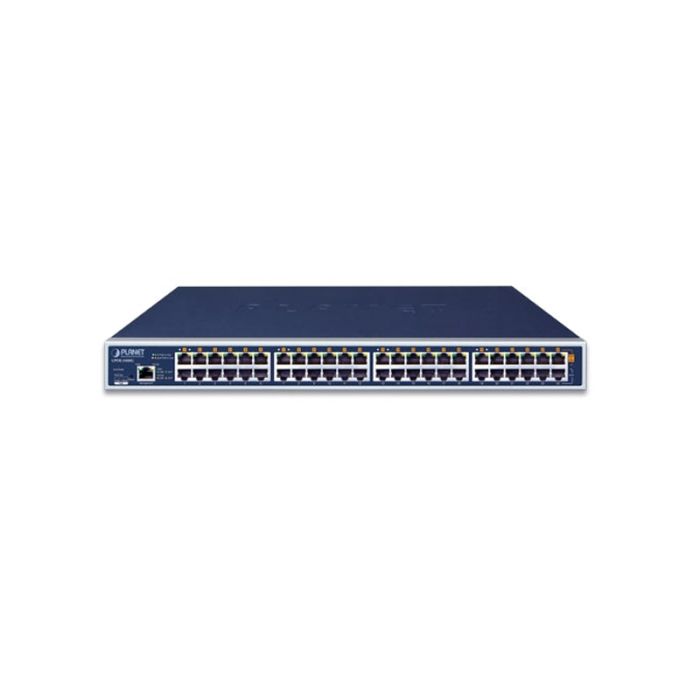

PLANET’s newly-improved UPOE-2400G, a high-density, rack-mountable managed 802.3bt PoE++ Managed Injector Hub, features eight 10/100/1000BASE-T 90-watt 802.3bt type-4 PoE++ injector ports and sixteen 10/100/1000BASE-T 60-watt 802.3bt type-3 PoE++ injector ports with PLANET intelligent PoE functions through web user interface for remote management. With a total PoE budget of 800 watts, it delivers ultra PoE power over Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).

Interface

• 48-port RJ45

- 24-port 10/100/1000Mbps “Data input”

- 24-port 10/100/1000Mbps “Data + Power output”

• One 10/100/1000BASE-T management port

802.3bt Power over Ethernet

• Complies with IEEE 802.3bt Power over Ethernet Plus Plus


• Backward compatible with IEEE 802.3at Power over Ethernet Plus


• Up to 24 ports of IEEE 802.3at/IEEE 802.3bt PoE devices powered


• 8 PoE ports with built-in 802.3bt type-4 PoE 90W or ultra PoE 95-watt injector function (Port-1 to Port-8)


• 16 PoE ports with built-in 802.3bt type-3 PoE 60W or ultra PoE 72-watt injector function (Port-9 to Port-24)


• All PoE ports support 802.3at end-span/mid-span PoE 36W injector function


• Auto detects powered device (PD)


• Circuit protection prevents power interference between ports


• Remote power feeding up to 100 meters

PoE Management

• Per port PoE power schedule


• PoE function enable/disable


• Per port PoE function enable/disable


• Per port PoE operation mode selection


• PoE port power feeding priority


• PD classification detection


• Over temperature protection


• PD alive check


• PoE schedule

Management

• Web interface for remote management


• Supports Network Time Protocol (NTP)


• Firmware upgrade through Web interface


• PLANET Smart Discovery utility automatically finds PLANET devices on the network


• SNMP v1, v2c and v3 for system status monitoring


• SNMP trap for alarm notification of events


• System log/remote syslog

Hardware

• 19-inch rack mountable; 1U height


• Reset button for resetting to default setting and system reboot


• LED indicators for PoE ready and PoE activity


• LED indicators for power alert and fan alert
