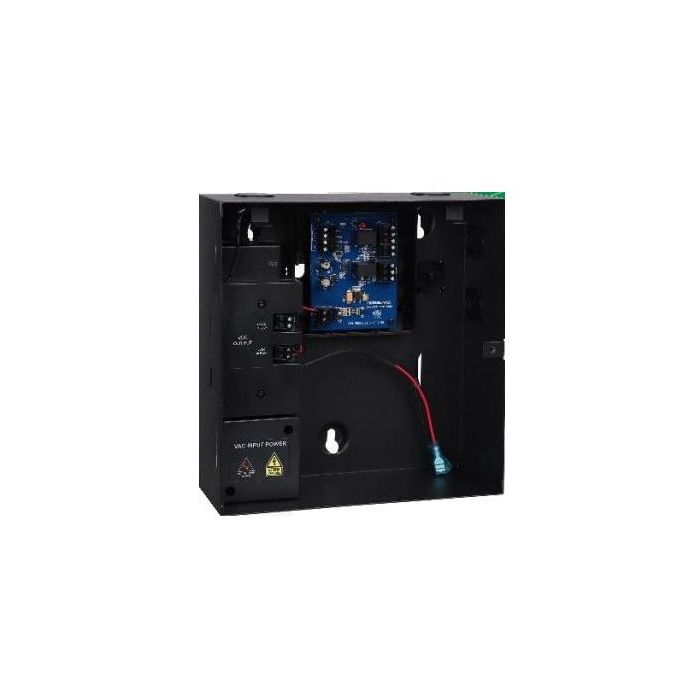

The PS-C25TB has a switch mode power supply with a universal power input range of 100 – 240 VAC, 50/60 Hz, 1.5A AC input, and generates a 15V DC, 4A output to the PM-05 power management module. The PM05 has two independent power channels outputs each with an isolated PTC (self-resetting fuse), with one channel connected to the MD-25TB and the second channel available to power any device of your choice. The MD-25TB isolates the lock from the Controller Unit, securing lock functionality when the Controller Unit is tampered with on the outside of the secure premises. A proprietary two way protocol allows the Controller Unit to activate the Lock/Auxiliary relays and activate the built in speaker (for bell, chime, and siren) in the Secure Module, while the Secure module can also communicate REX input status to the Controller Unit. If the data line between the Controller Unit and the secure module is cut, the system detects the data line has been tampered with and generates a one-minute siren and closes the lock output. Battery backup is available upon AC power failure, the PM-05 module instantaneously (UPS) switches power over to a standby 7AH sealed lead acid battery (not included). The battery charging is managed by the PM-05 with a low battery cut-off preventing batteries from deep discharge.

• Relay for secure door operation using Rosslare AYC series of convertible controllers


• Global input voltage – 110 VAC to 240 VAC 50/60Hz auto select.


• Delivers two isolated 14.5VDC @2 Amp


• Universal C14 power plug for standard power cable connection (order option).


• Rosslare PowerLock™ C13 socket – power cable can be secured using a locking mechanism and cannot be pulled out of the socket
