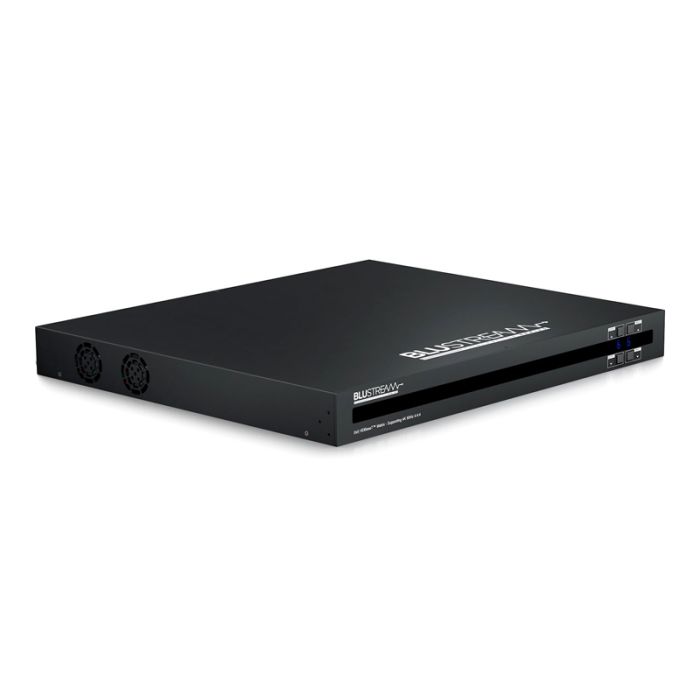

Contractor 6x6 HDBaseT™ CSC Matrix - 70m (4K up to 40m)

Contractor 6x6 HDBaseT™ CSC Matrix - 70m (4K up to 40m)

Bi-directional IR, PoC, Simultaneous HDMI / HDBaseT™ on Output 1, Video Down-scaling on HDBaseT™ Outputs, RS-232 & TCP/IP Control, HDCP 2.2 Compliant, Web GUI

Contractor 6x6 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market. The C66CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology* to deliver HDMI, Bi-directional IR and PoC up to lengths of 40m over a single CAT cable (1080p to 70m).

The Matrix also provides advanced features including simultaneous HDBaseT™ / HDMI on output 1, video down conversion on HDBaseT™ outputs and a web browser interface module for control and configuration of the matrix.

Box Contents

1 x C66CS
1 x Rack Mounting Kit
1 x Remote Control
6 x IR Emitters
7 x IR Receivers
1 x RS-232 Control Cable
1 x IR Control Cable - 3.5mm-3.5mm Cable
1 x Quick Reference Guide
Power Cable(s)

Key Features

•


  Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable





•


  Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR*





•


  Features 6 x HDMI inputs which can be independently routed to 6 x HDBaseT™ outputs





•


  Output 1 features simultaneous HDMI and HDBaseT™ output





•


  Video down-conversion on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs





•


  Supports 4K 60Hz 4:4:4 UHD video up to 40m





•


  Extends HDMI 1080p video up to 70m





•


  Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K





•


  Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission





•


  Web interface module for control and configuration of matrix





•


  Supports bi-directional IR on all HDBaseT™ outputs





•


  Control via front panel, IR, RS-232 and TCP/IP





•


  Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers





•


  Supplied with Blustream IR receivers and emitters





•


  3rd Party drivers available for major control brands





•


  1U Design for 19" rack mount integration - mounting kit included





•


  Advanced EDID management





•


  HDCP 2.2 compliant
  Recommended receiver: RX70CS (where 18Gbps CSC support is required)









  *For 18Gbps CSC support use RX70CS receivers




Specifications

•


  Video Input Connectors: 6 x HDMI Type A, 19-pin, female





•


  Video Output Connectors: 1 x HDMI Type A, 19-pin, female, 6 x HDBaseT™ RJ45 connector





•


  RS-232 Serial Port: 1 x DB9 Serial connector





•


  TCP/IP Control: 1 x RJ45, female





•


  IR Input Ports: 7 x 3.5mm stereo jack





•


  IR Output Ports: 6 x 3.5mm mono jack





•


  Rack Mountable: 1U rack height, rack ears included





•


  Case Dimensions (without feet) (W x D x H): 437mm x 377mm x 44mm





•


  Dimensions (W x D x H): 437mm x 384mm x 53mm





•


  Shipping Weight: 6.25kg





•


  Operating Temperature: 32°F to 104°F (-5°C to +55°C)





•


  Storage Temperature: -4°F to 140°F (-25°C to +70°C)





•


  Power Supply: Internal 100-240V AC
