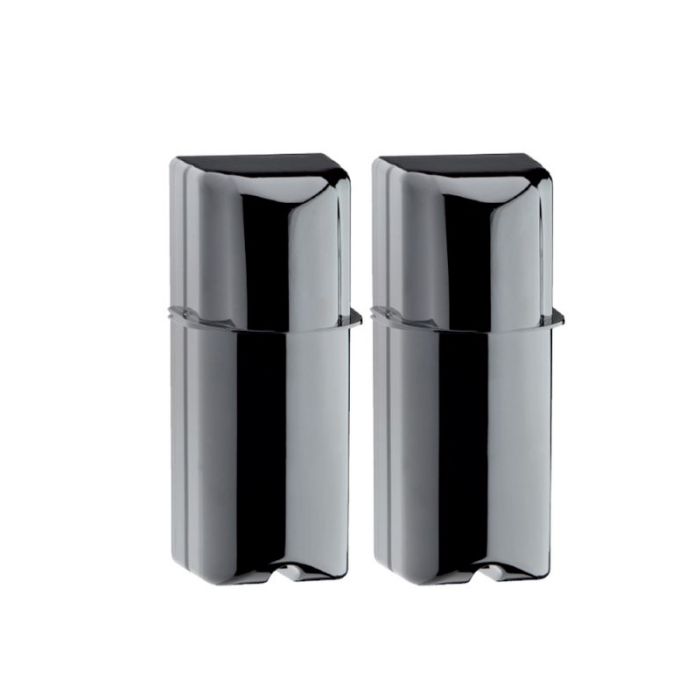

Bosch Photo Beam 90/180M Dual 1 Channel

Bosch Photo Beam 90/180M Dual 1 Channel

The ICS-FPB1-W90DS a range of 90 m (300 ft) outdoors, or 180 m (600 ft) indoors.

• Dual beam detection improves false alarm immunity


• Selectable response time


• Small unobtrusive design

Mounting features

Mounting and installing the detector is now easier than ever through easy-to-use mounting hole locations, an enlarged entry point of access to accept small to large, single or multiple cable set wires, side access alignment test terminals for voltmeter connection, front access sensitivity adjustment, built-in aiming optics ensures improved alignment, and accessible fastening screw locations that eliminate the need for unnecessary crawling or bending during installation.

Dust/insect cover features

The included foam sealing on both sides of the mounting plate ensures that the detectors are properly secured from insects and other environmental elements such as humidity and temperature fluctuations. The improved cover design includes water flow channels to prevent water and dirt from accumulating in front of optic components, and eliminates the need for additional weatherproofing solutions.
