- 4x2 HDBaseT™ CSC Matrix Kit - 70m (4K60Hz 4:4:4 up to 40m), Bi-directional IR, PoC), Simultaneous HDMI / HDBaseT™ on output 1, video Smart Scaling on HDBaseT outputs, Auto Source Selection, Audio Breakout, RS-232 & TCP / IP Control, HDCP2.2 compliant, ... 4x2 HDBaseT™ CSC Matrix Kit - 70m (4K60Hz 4:4:4 up to 40m), Bi-directional IR, PoC), Simultaneous HDMI / HDBaseT™ on output 1, video Smart Scaling on HDBaseT outputs, Auto Source Selection, Audio Breakout, RS-232 & TCP / IP Control, HDCP2.2 compliant, ...
4x2 HDBaseT™ CSC Matrix Kit - 70m (4K60Hz 4:4:4 up to 40m), Bi-directional IR, PoC), Simultaneous HDMI / HDBaseT™ on output 1, video Smart Scaling on HDBaseT outputs, Auto Source Selection, Audio Breakout, RS-232 & TCP / IP Control, HDCP2.2 compliant, ...
Warning: Limited Stock Available.
- Description
- Shipping & Returns
- Reviews
4x2 HDBaseT™ CSC Matrix Kit - 70m (4K60Hz 4:4:4 up to 40m), Bi-directional IR, PoC), Simultaneous HDMI / HDBaseT™ on output 1, video Smart Scaling on HDBaseT outputs, Auto Source Selection, Audio Breakout, RS-232 & TCP / IP Control, HDCP2.2 compliant, Web-GUI, includes 2x HDBaseT™ Receivers
Our Essential 4x2 HDBaseT™ Matrix offers unprecedented performance and value for the custom installation market.

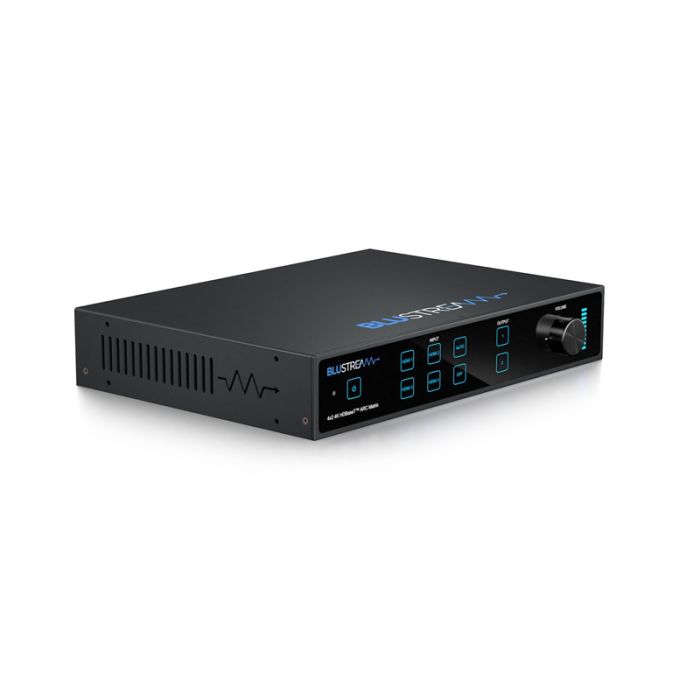

The HMXL42ARC-KIT is a HDMI2.0 4K60Hz 4:4:4 HDCP2.2 Matrix package utilising CSC technology to deliver HDMI, Bi-directional IR and PoC up to lengths of 70m over a single CAT cable.
The Matrix also provides advanced features including simultaneous HDBaseT™/HDMI on output 1, video Smart Scaling on HDBaseT outputs, manual or auto source selection, independent audio matrix and a web browser interface module for control and configuration of the Matrix.
The HMXL42CS-KIT is supplied with 2 x HDBaseT™ receivers.
-
Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
-
Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR • Features 4 x HDMI inputs which can be independently routed to 2 x HDBaseT™ outputs
-
Output 1 features simultaneous HDMI and HDBaseT™ output
-
Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
-
Supports 4K 60Hz 4:4:4 UHD video up to 40m
-
Extends HDMI 1080p video up to 70m
-
Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
-
Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
-
8 x 2 audio matrix that is independently controllable from video.
-
Audio source inputs include: - 4 x audio breakout from HDMI source - 2 x audio breakout from zone outputs - 2 x ARC from zone outputs
-
Audio breakout to analogue L/R audio and optical digital (S/PDIF) outputs concurrently with line level volume control on analogue outputs
-
Audio breakout features selectable source from zone audio breakout or ARC from zone outputs via HDMI ARC or optical ARC
-
Web interface module for control and configuration of matrix
-
Supports bi-directional IR on all HDBaseT™ outputs
-
Supports PoC (Power over Cable) to power supplied RX70CS HDBaseT™ receivers
-
3rd Party drivers available for all major control brands
-
Advanced EDID management
-
HDCP 2.2 compliant
-
Supplied with 2 x RX70CS HDBaseT™ receivers
